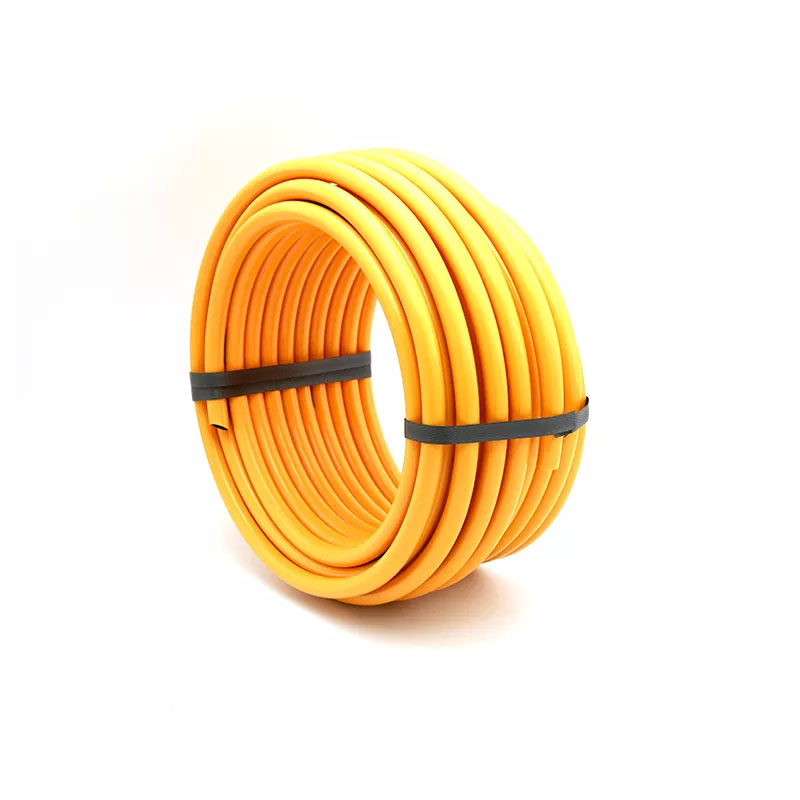

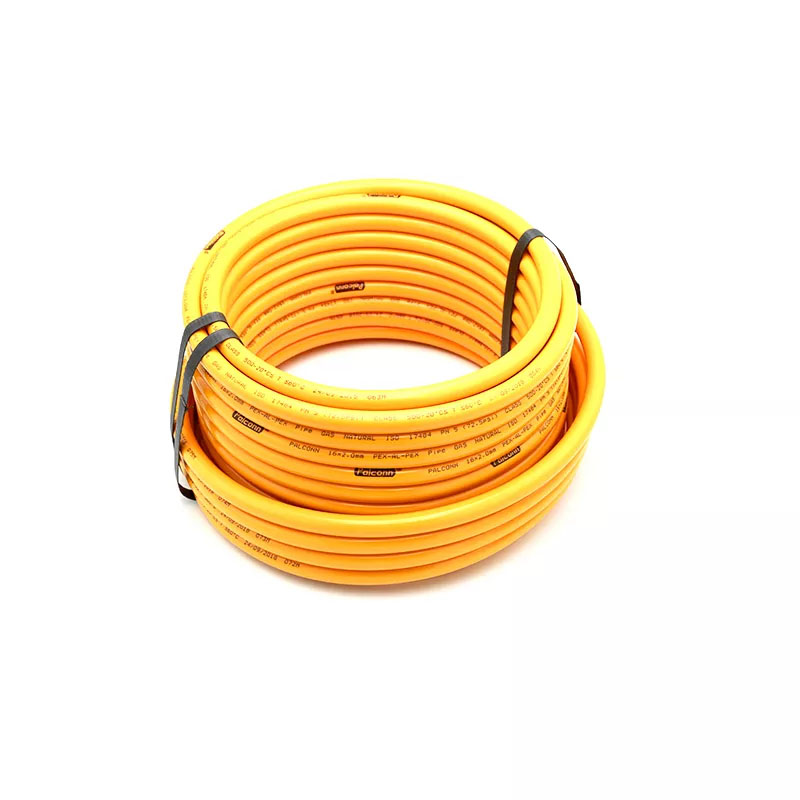

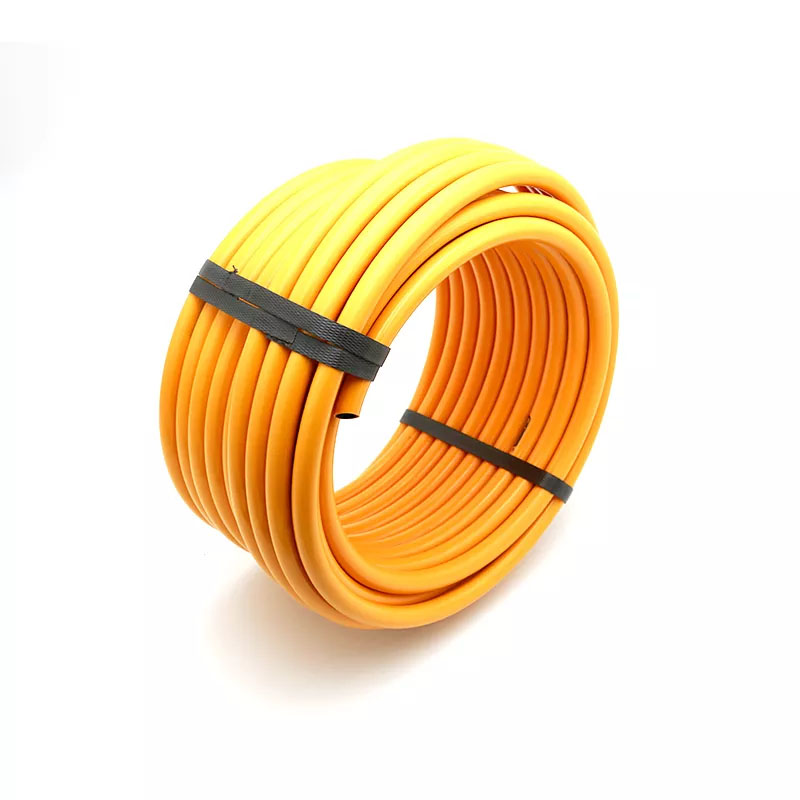

PE AL PE GAS PIPE

The PALCONN multilayer gas piping system is a new generation of pipe that combines the benefits of a plastic and metal pipe, providing high flexibility and toughness as well as high pressure and temperature resistance. Overlapped and butt-welded are both available for the aluminum alloy layer that guarantees an entire barrier to the passage of oxygen and light and provides excellent mechanical and chemical properties.

Applications:

PALCONN Multlayer plumbing system can be used in the following applications:

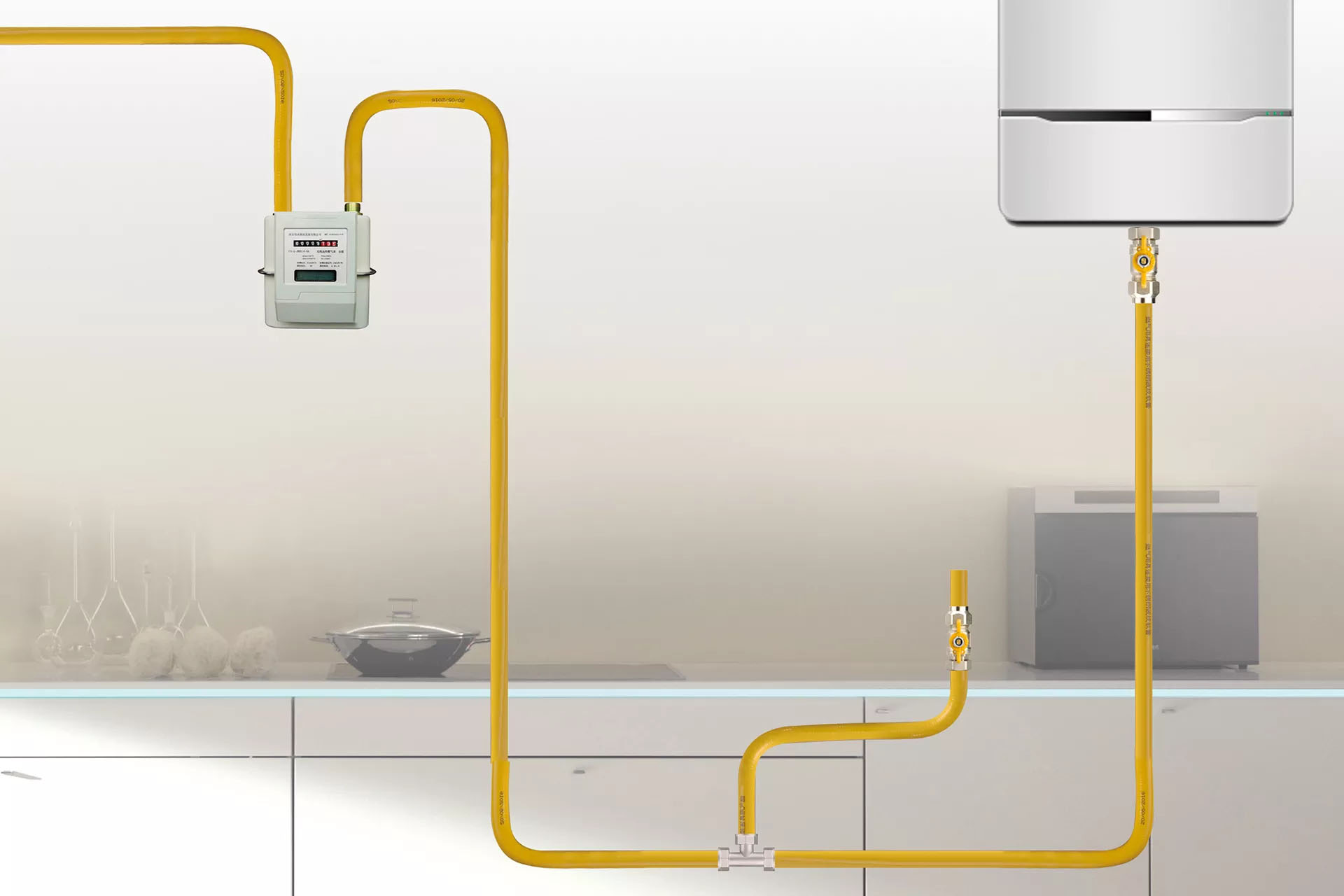

LPG vapour, natural gas and natural gas liquids.

Standards:

ISO 17484/AS4176



ISO Dimension:


SpecficationLength
16mm50m/100m/200m/300m/400m/500m/roll
18mm50m/100m/200m/300m/400m/500m/roll
20mm50m/100m/200m/300m/400m/500m/roll
25mm50m/100m/200m/300m
26mm50m/100m/200m/300m
32mm50m/100m/200m


PE AL PE GAS PIPE4.jpg
